Adapter



                                               Art No. : CA001   Eyepieces Projection Camera adapter

This sturdy camera adapter attaches to your SLR camera on one end and your telescope on the other, allowing you to do either prime focus or eyepiece projection photography.

Barrel accepts a variety of 1.25" eyepieces for photography of the planets. Also, a T-Mount for your specific camera brand is necessary, and fits between your camera body and the Camera Adapter (sold separately).



                                 35mm Extension tube, 50mm Extension tube, 80mm Extension tube

Art No. : FF113-35mm extension tube 2”
With brass compression ring; Threaded for standard 2" filters; Total length = 70mm, Extension provided is 35mm (1.38").



Art No. : FF114-50mm extension tube 2”
With brass compression ring; Threaded for standard 2" filters; Total length = 85mm, Extension provided is 50mm (1.96").



Art No. : FF115-80mm extension tube 2”
With brass compression ring; Threaded for standard 2" filters; Total length = 115mm, Extension provided is 80mm (3.15").




                                                           Art No. : FF155-40mm Extension Tube T2

Threaded for standard 2" filters; Total length = 80mm, Extension provided is 40mm (1.57"), T2 thread outside.










                                                                       Camera adapter

We offer various camera adapters to complete with our Camera Project Lens, the adaptor M57-52 and M57-42 standard thread for our 2” camera project lens 30mm and 42mm Lens, the adapter M42-37 and M42-28 thread for 1.25” size of 32mm and 40mm lens. Also we accept any dimension for custom made camera adapter.




                                                              Art No. : FF145-2" to T thread adapter


For 2" focusers, the T-threads allow you to attach cameras (with proper T-ring) and other accessories. Barrel is threaded for 2" (48mm) filters.





                                                        Art No. : FF146-1.25" to 2" plus T thread adapter

This versatile 1.25" to 2" adapter includes t-threads. It is machined of anodized aluminum with dual thumbscrews for extra security. A brass compression ring is gentle on eyepieces. Barrel is threaded for 2" (48mm) filters.




                                                          Art No. : FF147-2" Eyepieces holder for SCT

Attaches to the rear cell of Schmidt-Cassegrain or Maksutov-Cassegrain telescopes. Presents a 2" barrel that will accept 2" accessories, like diagonals, barlows, etc. Includes brass compression ring with thumbscrew.

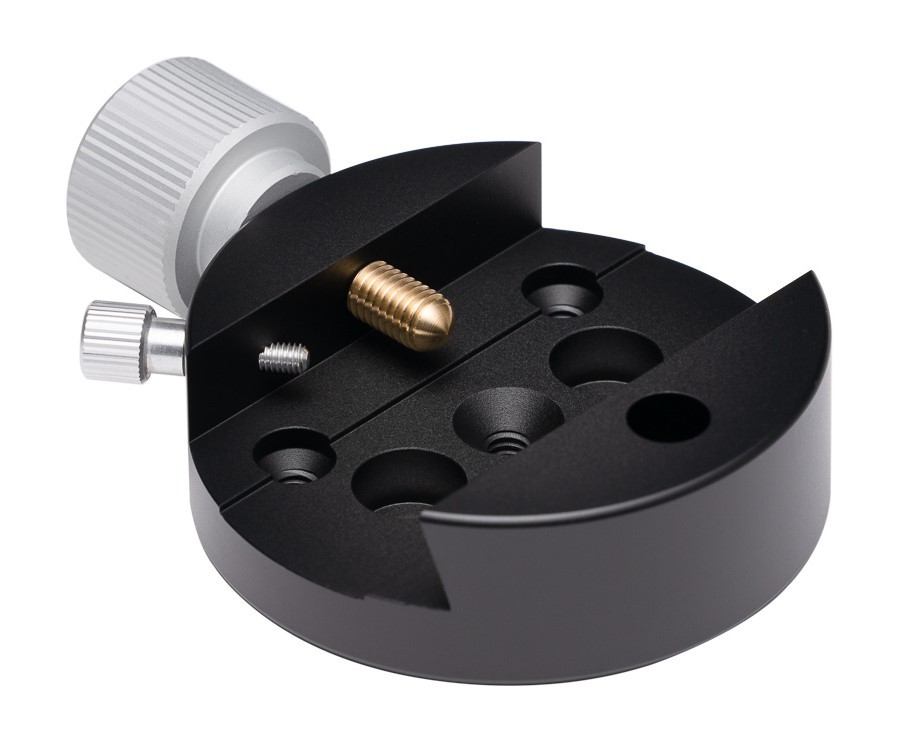

                                                                       Art No. : FF561-Dovetail mount

This dovetail plate adapter is made to be used with a dovetail plate (sold separately), allows the user to change out equipment without the use of tools.


                                                                     Art No. : FF070-Webcam adapter

This adapter to mount most 12mm threaded webcam, it fits Logitech QuickCam B/W, QuickCam Express, QuickCam VC, QuickCamPro, QuickCam Pro 3000, 3 Com Home Connect.



                                                           Art No. : FF683-35mm self-centering extension tube 2”

Handy the top extension adapter with helical compression mechanism, thread for standard 2" filters. Total length 70mm, Extension provided is 35mm (1.38").



                                                            Art No. : FF684-50mm self-centering extension tube 2”

Handy the top extension adapter with helical compression mechanism, thread for standard 2" filters. Total length 85mm, Extension provided is 50mm (1.96").


                                                             Art No. : FF685-80mm self-centering extension tube 2”

Handy the top extension adapter with helical compression mechanism, thread for standard 2" filters. Total length 115mm, Extension provided is 80mm (3.15").


                                                                 Art No. : FF686-80mm self-centering extension tube 2”

Handy the adapter precisely centers with any 1.25" eyepieces nosepiece, thread for standard 2" filters.
